Lot of 3 Electro Composites SDC 46kV 400/1200A 250kV BIL Transformer Bushings



SKU: 6402-AREV

Manufacturer: Electro Composites

Model: SDC 46kV 400/1200A 250kV



UOM: Lot

Condition Code: Excellent

Weight: 400.000 lbs



Qty: 1



Location: Investment Recovery Center (IRC) - Jackson, MI



Long Description: Lot of 3 Electro Composites SDC 46kV 400/1200A 250kV BIL Transformer Bushings
•Description:

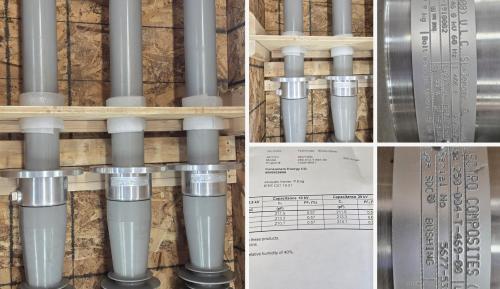

•Lot of three (3) Electro Composites SDC high-voltage composite transformer/breaker bushings, supplied in original protective wooden crate with associated components shown.
•Specifications
•Manufacturer: Electro Composites
•Series: SDC – Solid Dielectric Capacitor
•Catalog No.: 250-412-T-691-00
•Model: 0691-00
•Voltage Class: 46 kV
•Current Rating: 400/1200 A
•BIL: 250 kV

•Application: Transformer / Breaker
•Air-to-Oil application
•Minimum Creepage: 52 in.
•Approximate Length: 64.69 in.
•Individual Weight: 88 lb
•Quantity: 3
•Combined bushing weight: 264 lb
•IEEE C57.19.01
•Test Documentation
•Original factory test report dated 05/12/2024 is included.

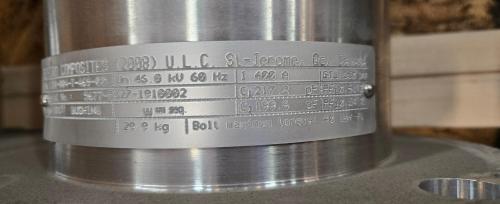

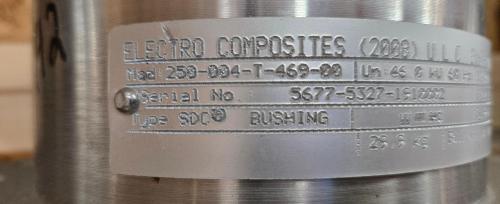

•All three serial-numbered bushings are documented on the report and show OK results for the applicable withstand testing. Test report and identification plates are shown in the photographs.
•Units appear to be new/unused utility surplus and remain stored in their protective shipping crate. Please review photographs for exact condition, identification numbers, included components and test documentation.

•UNLESS PRIOR ARRANGEMENTS HAVE BEEN MADE, ITEMS NOT PICKED UP WITHIN 7 BUSINESS DAYS MAY BE RELISTED AND/OR MOVED OUTDOORS AT OUR DISCRETION •
•ALL ITEMS ARE SOLD AS-IS, WHERE-IS.
• Consumers Energy IRC will be available to assist loading with forklift if needed.
• Consumers Energy reserves the right to end this listing at any time without notice if material/equipment deemed needed for company use.
• As is, No Refunds, No Warranties, No Returns.

•FOR PICK UP ONLY - FOB •
•We do not offer shipping, unless we are provided with a paid shipping label. •
•Weight and dimensions can be provided by request. •
•We cannot ship orders weighing over 40Lbs, Freight is on buyer (you must provide trucking). •
