Complete Nitrogen Generation Plant Support System (Covert Generating Station) (SOLD)
Item ID
2580
Category
Tools & Machinery
Model Number
GA 90 GA37+ FF
SKU
6137-AREV
Manufacturer
Atlas Copco
Condition Code
Used
Weight
8500.000 lbs
UOM
Lot
Quantity
0
Organization Group
Investment Recovery Center
Location
Investment Recovery Center (IRC) - Jackson, MI
Condition Code
Used
Short Equipment/Material Description
Full industrial compressed air and nitrogen generation system, including three (3) Atlas Copco GA 90 compressors, one (1) Atlas Copco GA 37+ FF compressor, and a PSA nitrogen generation skid with dual adsorption towers(Covert)
Buyer picks up – Seller will load flatbed. Located: Covert Generating Station,
26000 77th St Covert, MI 49043
3 - Atlas Copco GA 90 rotary screw compressors:
Model: GA 90
Power: 150 HP (110 kW)
Pressure: 150 PSIG
Flow: ~506 CFM
Manufacturer: Atlas Copco (Holyoke, MA)
Early 2000’s approximately 24 years old

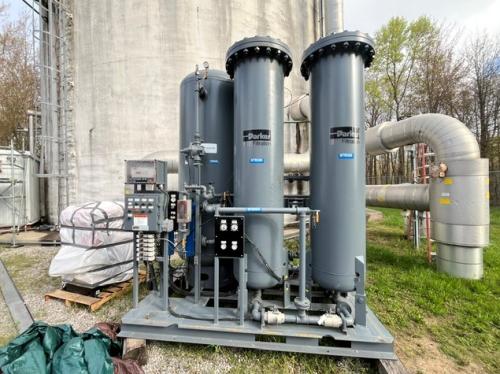

PSA Nitrogen Generation Skid System:
Complete skid-mounted PSA (Pressure Swing Adsorption) nitrogen generation system, designed for on-site nitrogen production using compressed air. System includes dual adsorption towers, filtration, controls, and silencers. Originally manufactured by Non-Cryo Nitrogen, Inc. (Baltimore, MD).
System Type: PSA Nitrogen Generator (Non-Cryogenic)
Configuration: Dual tower adsorption system
Manufacturer: Non-Cryo Nitrogen, Inc.
Silencers: Stoddard Silencers (Model L216)
Filtration: Parker Filtration system integrated
Skid Mounted: Yes (compact, transportable base)
MAWP (Maximum Allowable Working Pressure): ~150 PSI
MAWT (Max Allowable Wall Temp): ~400°F
MDMT: ~-20°F
Atlas Copco GA 37+ FF:
Model: GA37+ FF
Power: 37 kW (50 HP)
Flow: ~226 cfm (6.41 m³/min)
Pressure: ~128 psi (8.9 bar)
Year: 2006
Weight: ~2,469 lb Located :Covert Generating Station, 26000 77th St Covert, MI 49043
3 - Atlas Copco GA 90 rotary screw compressors:
Model: GA 90
Power: 150 HP (110 kW)
Pressure: 150 PSIG
Flow: ~506 CFM
Manufacturer: Atlas Copco (Holyoke, MA)
Early 2000’s approximately 24 years old
PSA Nitrogen Generation Skid System:
Complete skid-mounted PSA (Pressure Swing Adsorption) nitrogen generation system, designed for on-site nitrogen production using compressed air. System includes dual adsorption towers, filtration, controls, and silencers. Originally manufactured by Non-Cryo Nitrogen, Inc. (Baltimore, MD).
System Type: PSA Nitrogen Generator (Non-Cryogenic)
Configuration: Dual tower adsorption system
Manufacturer: Non-Cryo Nitrogen, Inc.
Silencers: Stoddard Silencers (Model L216)
Filtration: Parker Filtration system integrated
Skid Mounted: Yes (compact, transportable base)
MAWP (Maximum Allowable Working Pressure): ~150 PSI
MAWT (Max Allowable Wall Temp): ~400°F
MDMT: ~-20°F
Atlas Copco GA 37+ FF:
Model: GA37+ FF
Power: 37 kW (50 HP)
Flow: ~226 cfm (6.41 m³/min)
Pressure: ~128 psi (8.9 bar)
Year: 2006
Weight: ~2,469 lb Located :Covert Generating Station, 26000 77th St Covert, MI 49043
Product Attachment Documents
atlas-copco-ga-90.pdf
0848-VMP070-001 Nitrogen Skid.pdf
0848-VMP070-001 Nitrogen Skid.pdf
